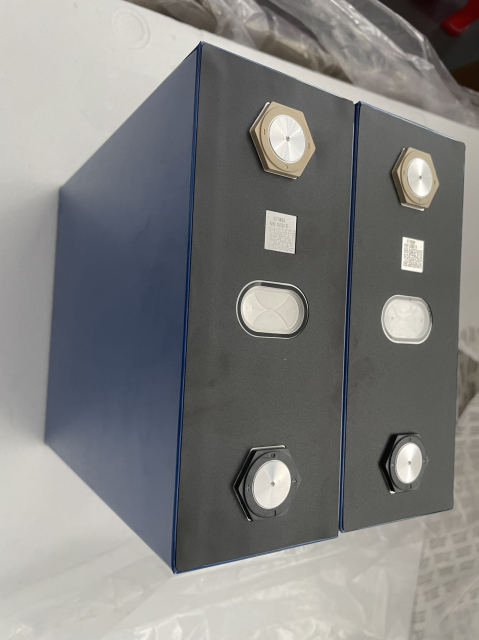

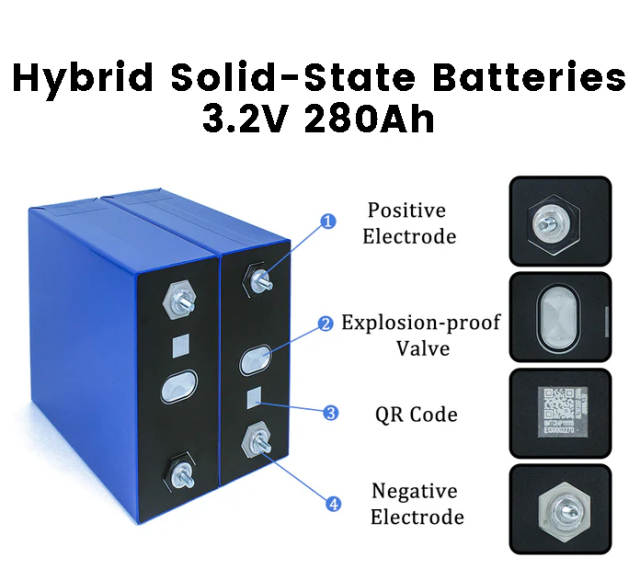

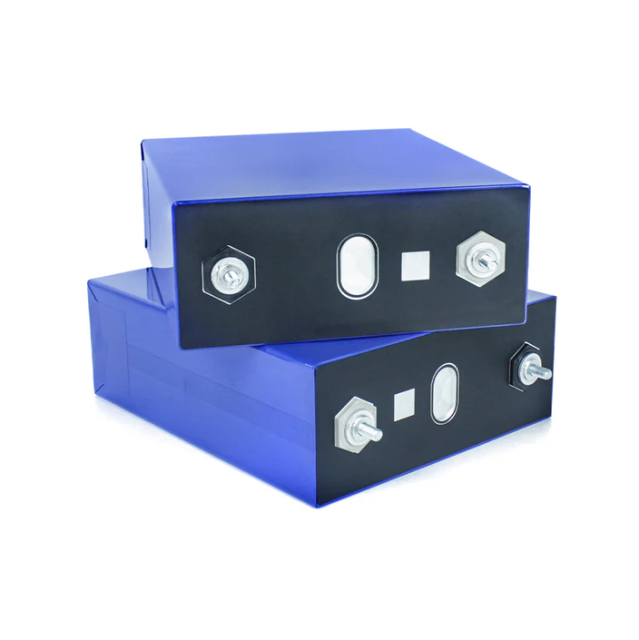

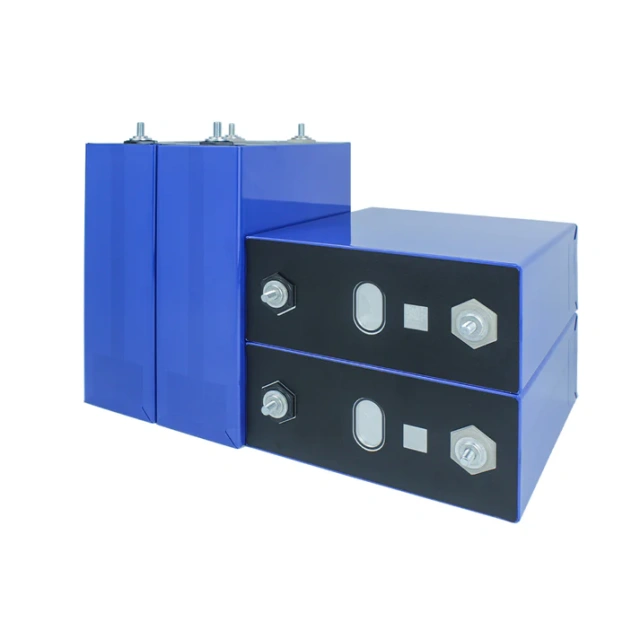

[ Hybrid Solid-State Batteries 3.2v 280ah ] High Quality Safety 3.2V Grate A Lithium Iron Phosphate Battery Cells

No.WL3.2V 280Ah
  • Featuring high capacity, Long life.
  • Wide temperature range and intrinsic safety .
  • No smoke
  • No fire
  • No explosion in extreme conditions,
  • Including nail penetration, Short circuit,Overcharging and hot box.
  • [ Hybrid Solid-State Batteries 3.2v 280ah ] High Quality Safety 3.2V Grate A Lithium Iron Phosphate Battery Cells
  • [ Hybrid Solid-State Batteries 3.2v 280ah ] High Quality Safety 3.2V Grate A Lithium Iron Phosphate Battery Cells
  • [ Hybrid Solid-State Batteries 3.2v 280ah ] High Quality Safety 3.2V Grate A Lithium Iron Phosphate Battery Cells
  • [ Hybrid Solid-State Batteries 3.2v 280ah ] High Quality Safety 3.2V Grate A Lithium Iron Phosphate Battery Cells
  • [ Hybrid Solid-State Batteries 3.2v 280ah ] High Quality Safety 3.2V Grate A Lithium Iron Phosphate Battery Cells
Description
Energy for your devices!

-Hybrid solid-liquid battery-

  • Featuring high capacity, Long life.
  • Wide temperature range and intrinsic safety .
  • No smoke
  • No fire
  • No explosion in extreme conditions,
  • Including nail penetration, Short circuit,Overcharging and hot box.


    Specification:

    Item

    Hybrid solid-liquid battery 3.2 280Ah

    Nominal capacity

    280Ah

    Nominal energy

    896Wh

    Nominal power

    448W

    Nominal voltage

    3.2V

    Working voltage




    2.5~3.65V (>0℃)

    2.0~3.65V(≤0℃)

    Energy density




    ≥165Wh/Kg

    ≥340Wh/L

    Energy efficiency

    ≥94%

    ADIR

    ≤0.20mΩ

    DCIR

    0.4±0.1mΩ

    Dimension

    (300kgf)







    207.5±0.5mm

    71.6±0.5mm

    174.4±0.5mm

    Weight

    5.5±0.05Kg

    Cycling capacity

    (300kgf)




    Room temperature≥6000 cycles @0.5P/0.5P-100%DOD

    High temperature≥3000 cycles @0.5P/0.5P-100%DOD



    Description:

    Physical tests: 900 cycles capacity retention rate 95.7% %@0.5P/0.5P-2.5~3.65V

    Simulation tests: 7000 cycles >80% and 10000 cycles >70%;

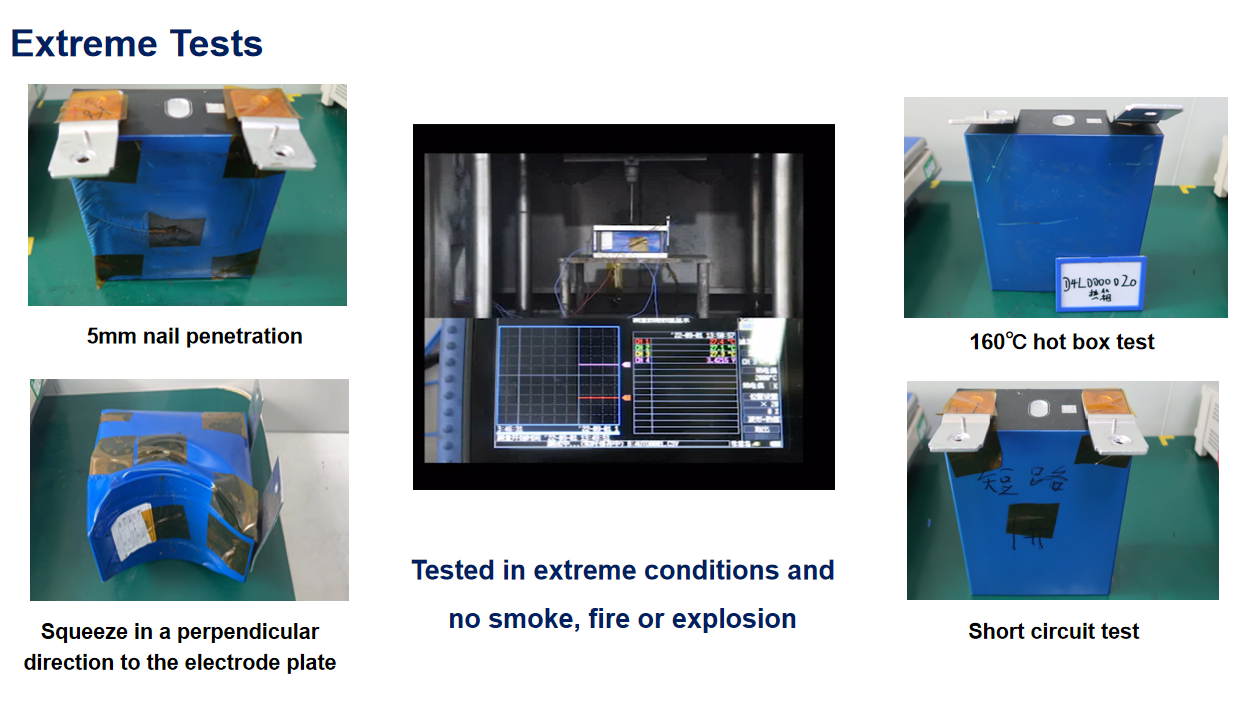

    No.

    Category

    Test Items

    Test Methods

    Criteria

    Result

    1

    Electrical safety










    Extreme charge

    0.5C, charge@25 ℃ to 25V or charge@25 ℃ for 1h

    No smoke, fire, or explosion

    Pass

    2

    Over discharge

    1C, charge@25℃ to 0V or charge@25℃ for 1h

    No leakage, smoke, fire or explosion

    Pass

    3

    Short circuit

    <5mΩ cable resistance@25℃ shorted to 0V or <5mΩ cable resistance@25℃ kept for 1h

    No smoke, fire, or explosion

    Pass

    4

    High temperature short circuit

    after storage@150 ℃,<5mΩ cable resistance shorted to 0V or

    <5mΩ cable resistance kept for 1h

    No smoke, fire, or explosion

    Pass

    5

    Mechanical safety







    Squeeze

    The battery is squeezed in a perpendicular direction to the electrode plate and 30% is deformed

    No leakage, smoke, fire or explosion

    Pass

    6

    Nail penetration

    5mm steel nail penetrates through the battery

    No leakage, smoke, fire or explosion

    Pass

    7

    Drop

    At a height of 1.2m, cathode and anode terminals fall onto the cement floor

    No leakage, smoke, fire or explosion

    Pass

    8

    Thermal safety







    Extreme heating

    Heat to 160 ℃ @5 ℃/min and maintain for 1 hour

    No smoke, fire, or explosion

    Pass

    9

    Temperature shock

    Change the temperature for 10 times from -40 ℃ to 75 ℃

    No leakage, smoke, fire or explosion

    Pass

    10

    Thermal runaway

    The heating pads are in direct contact with the battery and are heated at maximum power

    No thermal propagation or runaway in general. Even in case of thermal runaway, the battery does not catch fire, explode,

    Pass



    Safety Comparison

    Items

    SHS165-280

    Liquid cell 280Ah

    Nail penetration




    One single cell




    5mm nail

    No smoke, fire, or explosion

    No smoke, fire, or explosion

    8mm nail

    Smoke but no fire, or explosion

    Smoke but no fire, or explosion

    Short circuit

    One single cell

    Short circuit after storage@150℃

    No smoke, fire, or explosion

    Smoke, but no fire, or explosion

    Thermal runaway and propagation




    One single cell

    Thermal runaway triggered by heating

    Triggered time: 735S

    Triggered time: 358S

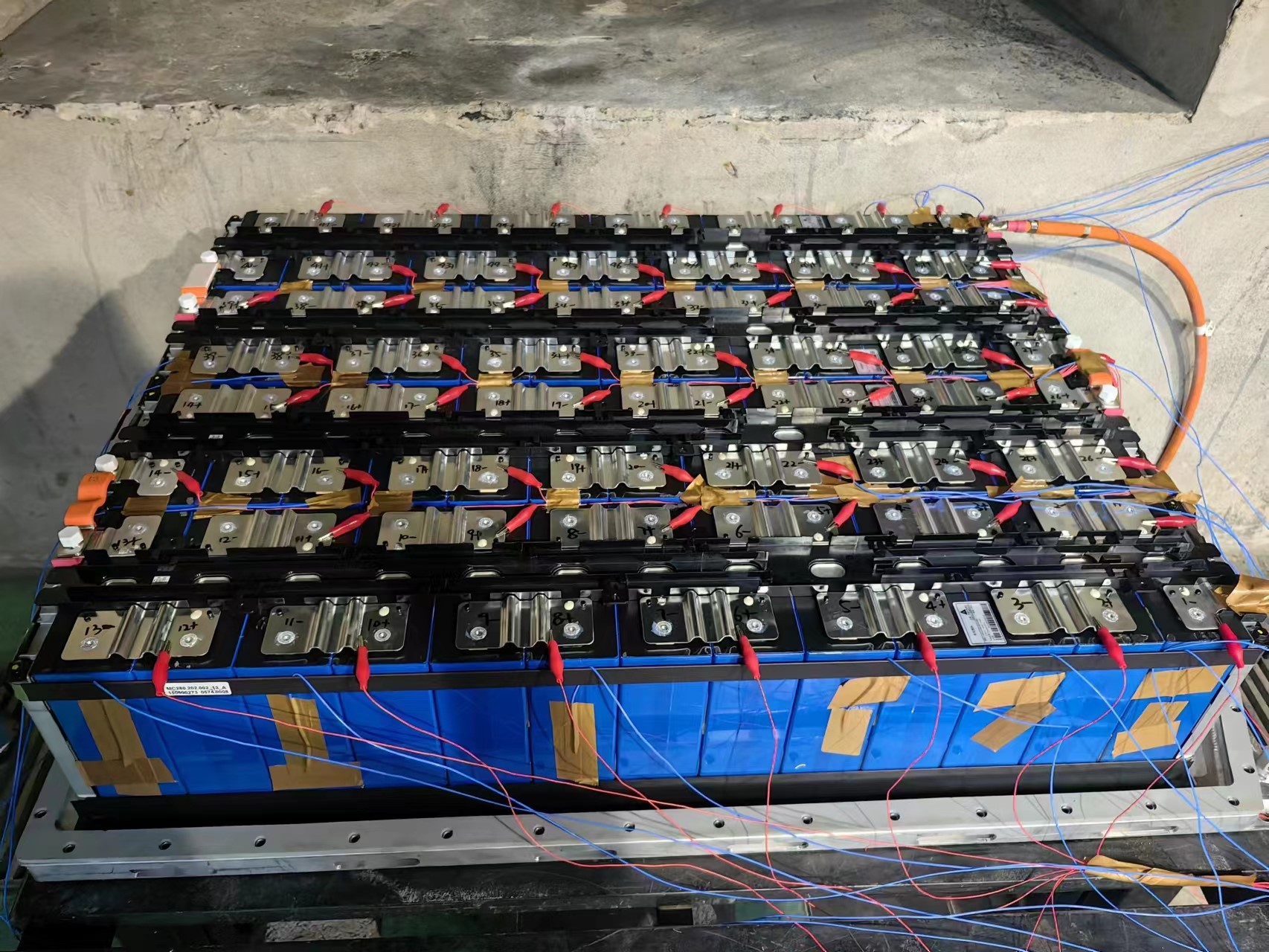

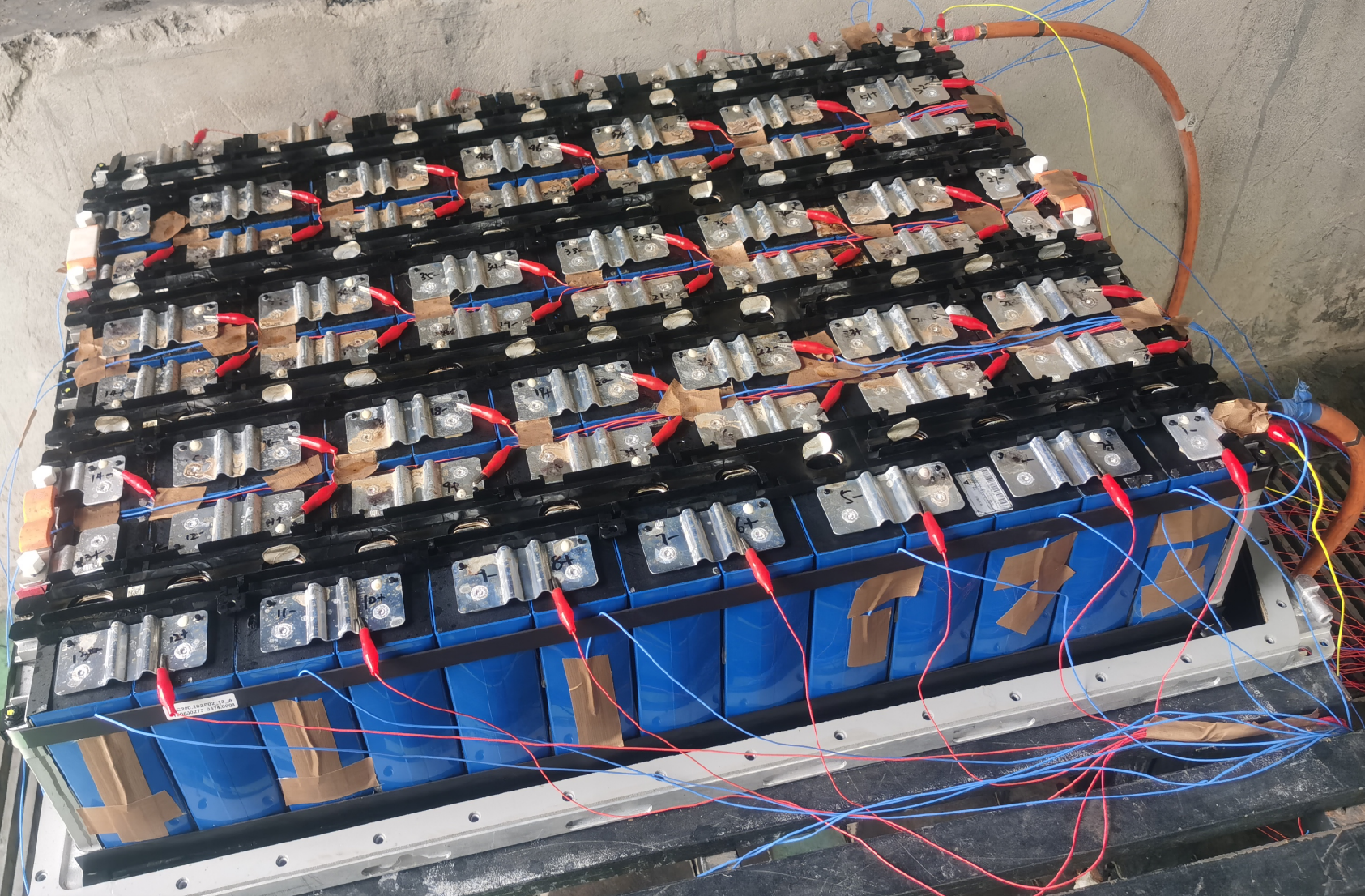

    A module of 1P13S

    Thermal runaway for cells before propagation for the entire module

    (1KW hot plates)

    No  thermal runaway or propagation

    No  thermal runaway or propagation

    Overcharge










    One single cell

    25V overcharge

    No smoke, fire, or explosion

    Smoke, but no fire, or explosion

    A module of 1P13S

    Overcharge-280A

    Highest cell temperature 122.0℃

    No thermal runaway

    Highest cell temperature 234℃

    Thermal runaway and propagation

    A module of 1P52S






    Overcharge-180A

    Overcharge SOC15.63%
    Highest cell temperature 118.9℃

    No thermal runaway

    Overcharge SOC23.63%
    Highest cell temperature 118.0℃

    No thermal runaway

    Overcharge-280A

    Overcharge SOC14.65%
    Highest cell temperature 138.7℃
    No thermal runaway

    Thermal runaway and propagation-catch fire




    Applications:


Everything You Need to Know About Wonderful Battery. Your Trusted Partner for Reliable Energy Solution
About LiFePO4 Battery Cells
1.Are the batteries new and high quality?

Yes, the batteries are brand new, directly from the original factory, and of excellent quality with intact QR codes.



2.Do the batteries include connectors and bolts?

Yes, the price includes connectors and bolts. Each battery comes with one connector and a set of bolts. For example, if you order 4 batteries, you’ll get 4 connectors and 8 bolts. If you need extras, please contact us.

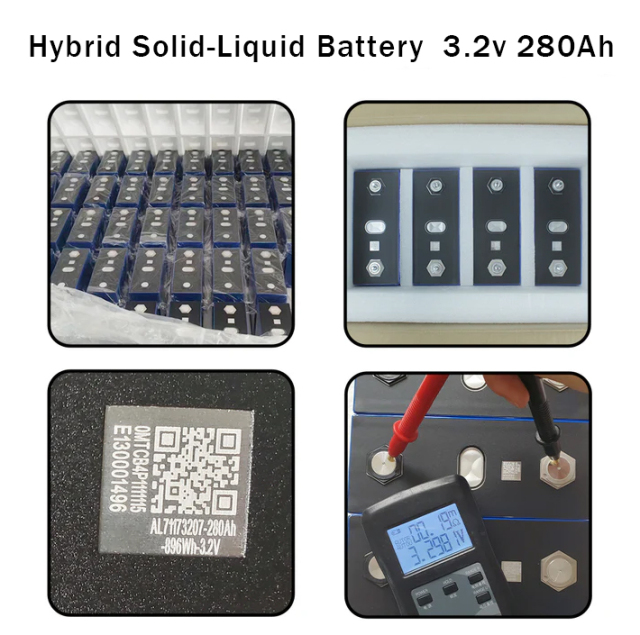

3.Are the batteries tested before shipment?

Absolutely! We test the voltage and internal resistance of every battery before shipping to ensure they meet quality standards.



4.How are the batteries packaged?

Each battery is carefully packed in thick foam or a protective bag, then placed in a sturdy 5-layer carton to prevent damage during transit.



5.How can I place an order?

You can place your order online if the shipping cost is clearly shown or free shipping is available. Alternatively, you can chat with us or send an inquiry, and we’ll assist with creating your order.



6.What if I need more help with my order?

You can reach out to us via online chat or email. We’ll get back to you as soon as possible.



7.How long does it take to ship after ordering?

The delivery time depends on the order quantity. We’ll confirm the timeline with you when the order is finalized.



8.What payment options do you offer?

We accept bank transfers. For other payment methods, feel free to contact us to discuss.

About Battery Packs
1.The battery pack is heavy. Will it be damaged during shipping?

This is also a matter of great concern to us.After long-term improvement and verification, our packaging is now very safe and reliable.When you open the package, you will definitely fell our sincerity.



2.Does the battery pack include a BMS? Can it power vehicles?

Yes, our battery pack include BMS, you can use it for low speed car only or aux.power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.



3.What features does the battery pack offer?

Our battery packs support customizable features like Bluetooth monitoring, RS485 communication, or CAN-bus connectivity.



4.How do you ensure the quality of the battery packs?

We use brand-new Grade A cells for all battery packs. Each one is tested for voltage, internal resistance, and capacity before being shipped to you.

Battery Warnings & Tips

Customers must follow these guidelines to ensure the safe and proper use of the cells:



1.Battery Management System (BMS):

   - Install a reliable BMS to monitor and protect each cell.

   - Share details of the BMS, including design, features, settings, and data formats, with EVE for review and record-keeping.

   - Maintain a data log of cell performance throughout its use for troubleshooting and quality responsibility. If no monitoring records are available, the manufacturer will not provide quality assurance.



2.Waterproof and Dustproof Design:

   - Ensure the battery pack is protected against water and dust as per national standards.

   - EVE is not liable for damages like rust or corrosion caused by poor waterproof or dustproof measures.



3.Mixing Cells:

   - Do not combine different cell types in the same system. Mixing cells voids quality assurance.



4.Voltage and Temperature Compliance:

   - Ensure the BMS operates within safe voltage and temperature limits.



5.Low-Temperature Charging:

   - Do not charge cells at temperatures below 0℃ or below the specified safety limits. Failure to follow this guideline voids quality assurance. Poor heat dissipation design may also affect performance, which is not the manufacturer's responsibility.



6.Voltage Protection:

   - If the cell voltage exceeds the limit, the system must take protective actions.

   - If the cell voltage drops to the cut-off level, recharge promptly to prevent over-discharge. Over-discharge and voltage violations are not covered by quality guarantees.



#Safety Precautions



- Avoid Water Contact:

  - Do not submerge the battery in water. Store it in a dry, cool place when not in use.



- Prevent Overcharging:

  - Overcharging can cause overheating or fire. Protect against repeated overcharging failures using hardware and software safeguards.



- Charging Time:

  - Set a reasonable time limit for charging to avoid overheating or thermal runaway. Faulty BMS management must be addressed during design.



- Charge Regularly:

  - Avoid over-discharge by keeping the voltage above 2.8V during regular use.



- High-Temperature Use:

  - Never use or store the battery in high-temperature conditions. Keep the temperature below 65℃ during normal operation. If exceeded, the BMS should shut down the system.



- Use Proper Chargers:

  - Always use a charger specifically designed for lithium-ion batteries.



- Follow Polarity Labels:

  - Connect the positive and negative terminals as labeled. Reversing connections is prohibited.



- Prevent Short Circuits:

  - Never use metal objects to directly connect the terminals. Short circuits can cause fires or serious injuries.



- Avoid Metal Contact During Transport or Storage:

  - Do not transport or store batteries with metal items like hairpins or jewelry.



- Handle With Care:

  - Do not drop, hit, step on, or bend the battery.

  - Avoid puncturing the battery with nails or sharp objects.



- Prevent Mechanical Stress:

  - Protect the battery from impact, pressure, or shocks that could lead to internal damage, overheating, or fire.



- Avoid Static Electricity and Magnetic Fields:

  - Keep the battery away from areas with strong static or magnetic fields to prevent damage to safety mechanisms.



- Secure Installation:

  - Fix the battery firmly to a solid surface. Keep power cords properly secured to prevent sparks or damage.



- Avoid Improper Materials:

  - Do not use plastic for sealing or electrical connections, as it may overheat and cause failures.



- Handling Leaks:

  - If electrolyte leaks onto skin or clothing, wash the area immediately with water. If it contacts the eyes, nose, or mouth, rinse thoroughly and seek medical help right away.



- Abnormal Behavior:

  - If the battery shows unusual signs like odor, heat, discoloration, deformation, or leaks, stop using it immediately and remove it from the device or charger.



- No Unauthorized Disassembly:

  - Do not disassemble the battery without written permission from the manufacturer.

Return & Refund Policy

Important:Please read and agree to these terms carefully before making your purchase.



#Warranty Service Information

- Sales-Specific Warranty Terms:

  Each sales representative may provide a different warranty solution based on their policies. If your sales representative offers specific warranty terms, please follow the conditions your wonderful battery sales provide.



#DIY Assembly Requirements

- Before assembling a DIY battery pack, ensure all cells are properly matched and balanced.

- Refunds or replacements will **not** be provided for:

  - Misassembled battery packs.

  - Damage to cells or the Battery Management System (BMS) caused during assembly.





#Return & Replacement Policy

1.Eligibility for Refund or Replacement:

   - Customers can request a free replacement or refund within 15 days of receiving the product for damaged or defective items.



2.If Damage Occurs During Shipping:

   - Contact us immediately with clear photos or videos for inspection.

   - Based on the inspection, we may offer a reshipment, replacement, or refund.



3.Buyer Responsibility:

   - Return shipping costs are covered by the buyer.

   - Refunds will exclude any transaction fees charged by the payment platform.





#Repair Services (Charged)

- We offer paid repair services for the following durations:

  - 5 years for EVE Grade A LiFePO4 cells.

  - 3 years for other LiFePO4 cells.

  - 1 year for BMS and accessories.

  - 5 years for Grade A battery packs.



- How to Request Repairs:

  - Provide photos or videos showing the issue.

  - We will offer solutions such as repairs, replacements, or partial refunds based on the situation.





Exclusions from Warranty Coverage

- Warranty does not cover:

  - Damage caused during assembly, such as incorrect wiring or unbalanced setups.

  - Issues like battery swelling, welding damage, or lack of BMS protection during charging.





#Battery Usage Warnings

1.Acknowledgement of Risk:

   - Buyers understand the potential risks of handling batteries, including injuries from chemicals, electric shocks, or arcs during use.

2.Safe Handling Tips:

   - Always exercise caution when operating batteries to reduce the risk of accidents.

3.Chemical Hazard:

   - Be aware of the risks posed by the electrolyte inside the battery.



Our Goal:

We strive to ensure transparency and a smooth experience for every customer. If you have any questions or need clarification about our policies, don’t hesitate to contact your wonderful battery sales representative.

Basic FAQs
 1. About Our Products
Q: Do you offer customization services?
A:Yes, we provide customization options, including size, color, logo, and more. Please reach out to our sales team with your specific requirements, and we will provide a tailored solution and detailed quotation.


2. Minimum Order Quantity (MOQ)
Q: What is your minimum order quantity?
A: Our MOQ varies depending on the product,  If you need samples or smaller quantities, feel free to contact us, and we will do our best to accommodate your needs.


3. Pricing and Payment
Q: Are your prices competitive?
A: We strive to offer high-quality products at the most competitive prices. For bulk orders, we provide additional discounts. Please contact us for a detailed quote based on your requirements.


4. Shipping and Logistics
Q: Do you ship internationally?
A: Yes, we ship worldwide. We collaborate with leading logistics providers and can arrange sea freight, air freight, or express delivery based on your order volume and timeline.

Q: How long does it take to process and ship an order?
A: Shipping times vary depending on the shipping method and destination. A detailed timeline will be provided upon order confirmation.


5. Sample Policy
Q: Can I request free samples?
A: We are happy to provide samples for testing. Some samples may be free, but shipping costs will need to be covered by the buyer. Please contact us for more details.


6. Contact Us
Q: How can I get in touch with you?
A:You can reach us through the following methods:
- Email: jack@wonderfulbattery.com  /ben@wonderfulbattery.com
- Phone: +86 13632636982


We will serve you the best products with the favorite prices
We will serve you the best products with the favorite prices
Name
Email*
Company Name
Phone
Content
020*
