Understanding Battery C Rates: The Key to Maximizing Performance

By Jack Lee December 8th, 2024 1009 views

When it comes to batteries, their charge and discharge rates are governed by something called C Rates.
Think of the C Rating as a measure of how fast a battery can be charged or discharged. It’s a straightforward concept but crucial for anyone dealing with batteries.

For example, if you have a fully charged battery with a capacity of 10Ah, a 1C Rate means it can deliver 10 Amps of current for one hour. Lower the rate to 0.5C, and the battery will provide 5 Amps for two hours. Crank it up to 2C, and it will discharge at 20 Amps—but only for 30 minutes. Knowing your battery’s C Rating can save you from surprises, as charging or discharging faster can slightly reduce its capacity (and sometimes turn energy into unwanted heat).

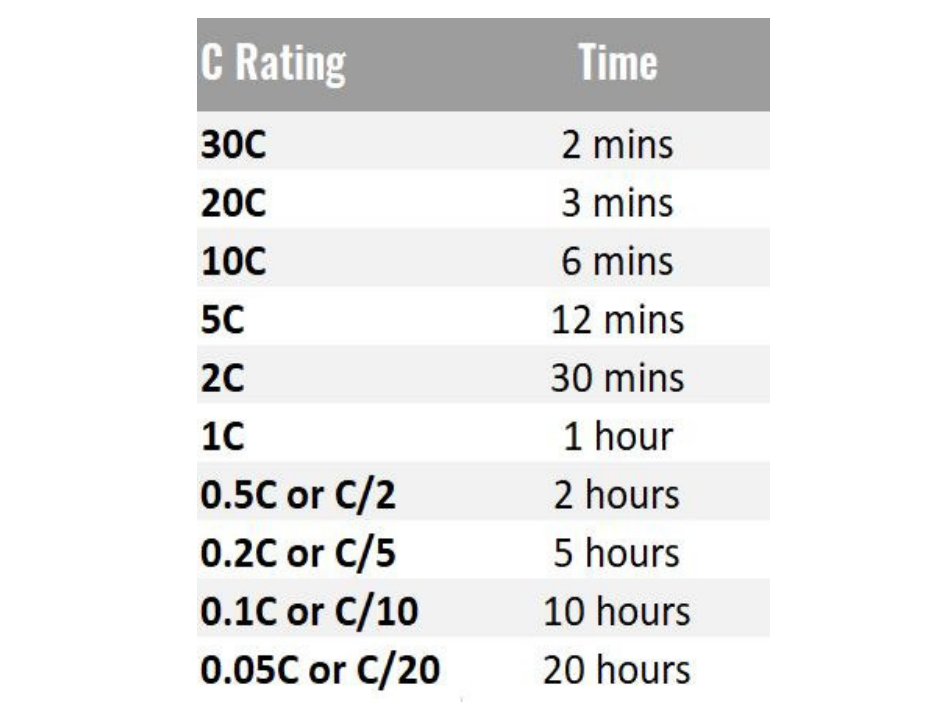

Quick Battery C Rate Chart
Let’s break it down:

1C Rate: Fully discharges in 1 hour.
0.5C Rate: Discharges in 2 hours.
2C Rate: Discharges in just 30 minutes.
Higher C Rates, such as 30C, result in lightning-fast discharges, but with a catch—efficiency can drop, and some energy turns into heat. Batteries are like us; they perform better when not pushed to the extreme all the time!

The Math Behind C Ratings
Don’t worry; you don’t need to be Einstein to calculate battery performance:

The formula is simple
t = Time
Cr = C Rate
t = 1 / Cr (to view in hours)
t = 60 minutes / Cr (to view in minutes)

0.5C RATE EXAMPLE
2300mAh Battery
2300mAh / 1000 = 2.3A
0.5C x 2.3A = 1.15A available
1 / 0.5C = 2 hours
60 / 0.5C = 120 minutes

2C RATE EXAMPLE
2300mAh Battery
2300mAh / 1000 = 2.3A
2C x 2.3A = 4.6A available
1 / 2C = 0.5 hours
60 / 2C = 30 minutes

30C RATE EXAMPLE
2300mAh Battery
2300mAh / 1000 = 2.3A
30C x 2.3A = 69A available
60 / 30C = 2 minutes

You can use the formula below to calculate output current, power and energy of a battery based on its C rating.
Er = Rated energy (Ah)
Cr = C Rate
I = Current of charge or discharge (Amps)
I = Cr * Er
Cr = I / Er

How to Identify Your Battery's C Rating
Most small batteries are labeled with their 1C rating. For instance, a 3000mAh battery rated at 1C will provide 3000mAh over one hour. If you’re dealing with lead-acid batteries, they’re often rated much slower, like 0.05C (a 20-hour rate).

If you can’t find the C Rating on the label or data sheet, check with the manufacturer or, better yet, call a battery expert—they’ll have the answers (and maybe some jokes about battery chemistry).

When High C Rates Are Necessary
Some devices demand batteries with super high C Rates, like drones, RC cars, and even jump starters for vehicles. For example:

Jump starters: Often require up to 35C.
RC models: Go even higher, sometimes reaching 50C!
For a fun fact: some batteries claim pulse discharge rates of 100C or more. That’s like sprinting the 100 meters in under 10 seconds—useful for a burst, but not sustainable for long.

Need help choosing the right battery? Contact one of our Wonderful Battery application engineers. We’re here to simplify the science, crack a few jokes, and help you power up! 🔋
