How to Charge and Use Lithium Batteries Effectively

By Jack Lee December 24th, 2024 845 views

SHIPPING INFORMATION
Are lithium batteries classified as Class 8 or Class 9 hazardous materials?
Lithium batteries are classified as Class 9 hazardous materials in these situations:

Air Transport: All lithium batteries must be shipped with a state of charge (SOC) of 30% or less when transported by air.
Ground Transport: Batteries with a capacity over 300Wh, or batteries between 100–299Wh that weigh more than 29.9 kg, are classified as Class 9 hazardous goods.
Smaller and lighter batteries may fall under less restrictive shipping classes. Always confirm with your carrier for specific regulations.

Can lithium and sealed lead-acid (SLA) batteries be shipped together?
Yes, but if any lithium battery on the pallet is classified as Class 9, the entire shipment will be transported under Class 9 regulations.

Are Wonderfulbattery lithium batteries UN38.3 certified?
Yes, all Wonderfulbattery lithium batteries comply with UN38.3 hazardous goods testing standards. However, batteries with capacities greater than 300Wh or between 100–300Wh and weighing more than 29.9 kg have additional shipping restrictions.

CHARGING GUIDELINES
What type of charger should I use for lithium batteries?
It is recommended to use a lithium (LiFePO4) charger. While sealed lead-acid (SLA) chargers can be used, they may cause undercharging or damage to lithium batteries.

Recommended charger specifications:

Supports Constant Current (CC) and Constant Voltage (CV) charging.
Constant Current (CC): Charging current ≤ battery capacity (e.g., a 9Ah battery should be charged at ≤9A).
Constant Voltage (CV): Minimum charging voltage of 14.6V.
Lead-acid chargers are acceptable if they meet these conditions:
No equalization mode.
Maximum charging voltage ≤14.6V.
Float voltage recommended at 13.8V.
A charger with a LiFePO4 setting is ideal for optimal performance.
SERIES AND PARALLEL CONNECTION

How many batteries can I connect in parallel?
All Wonderfulbattery lithium models allow up to 4 batteries in parallel without additional configurations.

Can I use batteries in both series and parallel?
Yes, Wonderfulbattery lithium batteries support both parallel and series setups.

BLUETOOTH FUNCTIONALITY
What is the Bluetooth range of the lithium battery?
The Bluetooth range is approximately 5 meters. Walls, windows, or other barriers may reduce this range.

Will enclosures affect Bluetooth connectivity?
Yes, if the battery is placed in a thick or metal enclosure, the Bluetooth signal may be weakened.

Can the battery's Bluetooth data be password-protected?
Currently, the battery is protected by a generic password.

Can I reset the battery to factory settings?
No, resetting to factory settings is not supported at this time. The battery’s default name is its serial number, which is listed on the label.

Does the app store battery data?
No, the app only reads real-time information broadcast by the battery. Any changes, such as renaming the battery, are saved directly to the battery’s memory, not the app.

GENERAL PERFORMANCE

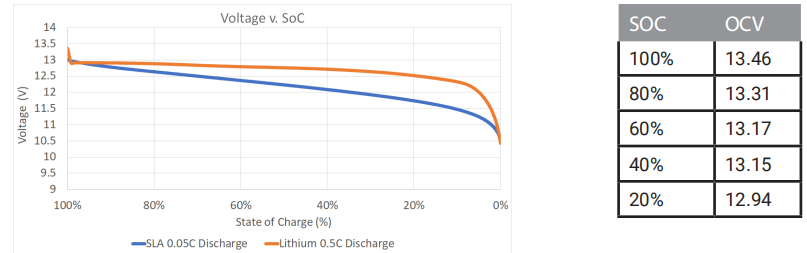

What is the relationship between open circuit voltage (OCV) and state of charge (SOC)?
Lithium batteries have a relatively flat voltage curve during discharge, making OCV less reliable for accurately determining SOC. For better results, use a reference table that links SOC to OCV.

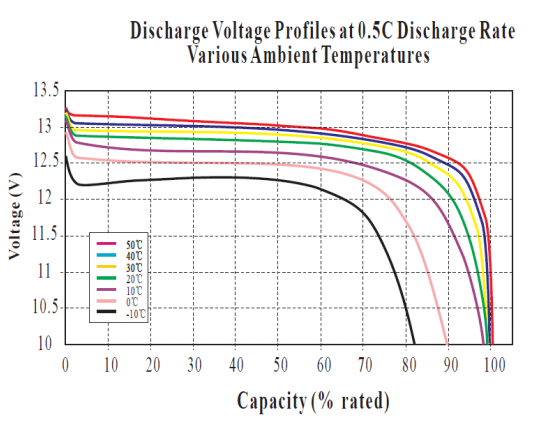

How does temperature affect battery performance?

At temperatures above 0°C, lithium batteries perform at near full capacity.
At temperatures below 0°C, capacity decreases, but self-heating during discharge can partially offset the loss.

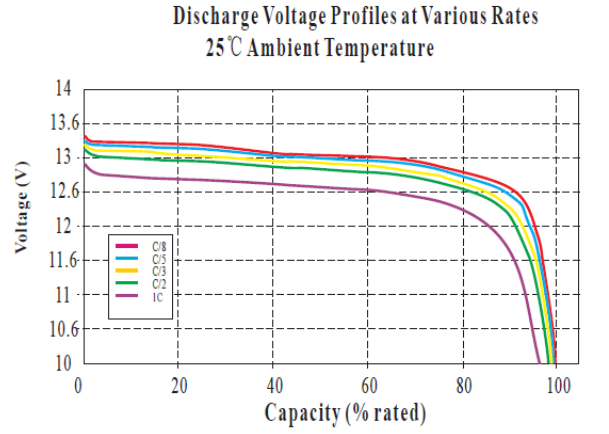

Does the discharge rate affect capacity?

Capacity is consistent between C/2 and C/8 discharge rates.
At higher discharge rates (e.g., 1C), capacity decreases slightly due to a drop in voltage.

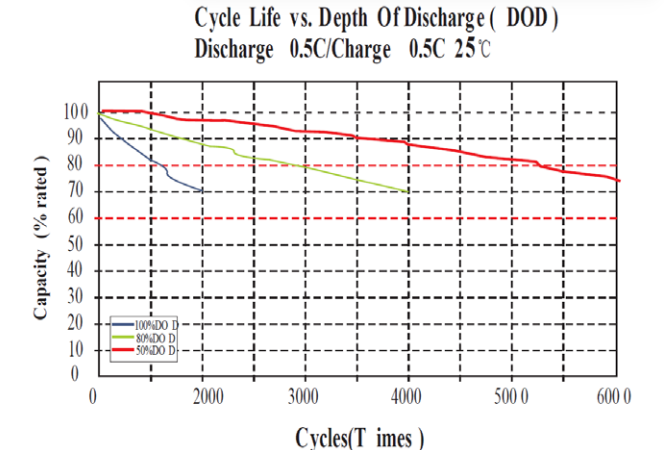

How does depth of discharge (DOD) affect battery life?

Lithium batteries are designed to handle deep cycling and maintain excellent longevity even at 100% DOD. However, for optimal lifespan, a DOD range of 50–100% is recommended.
